Description:

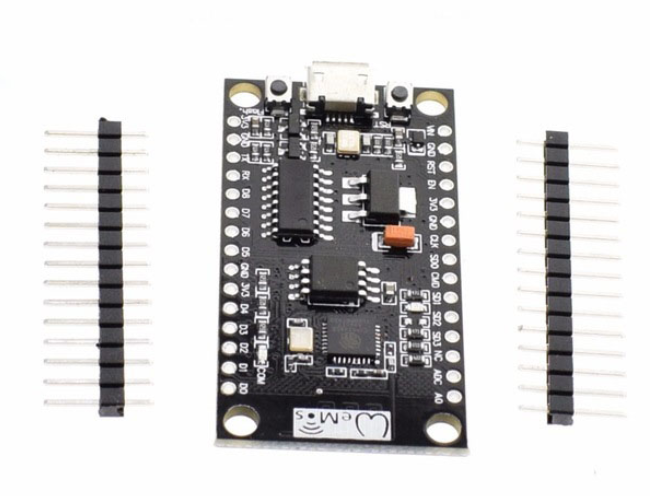

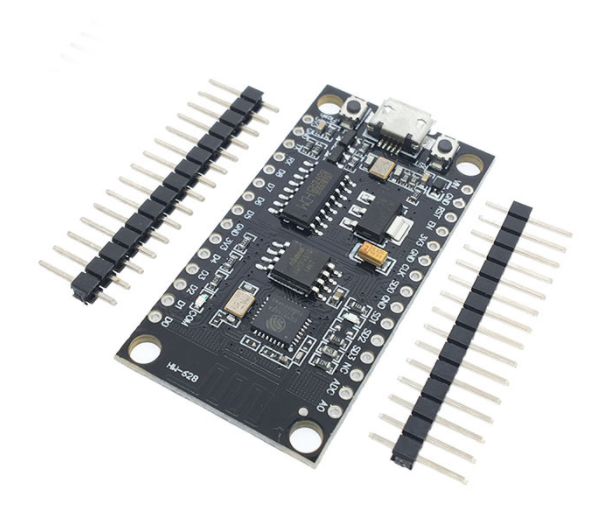

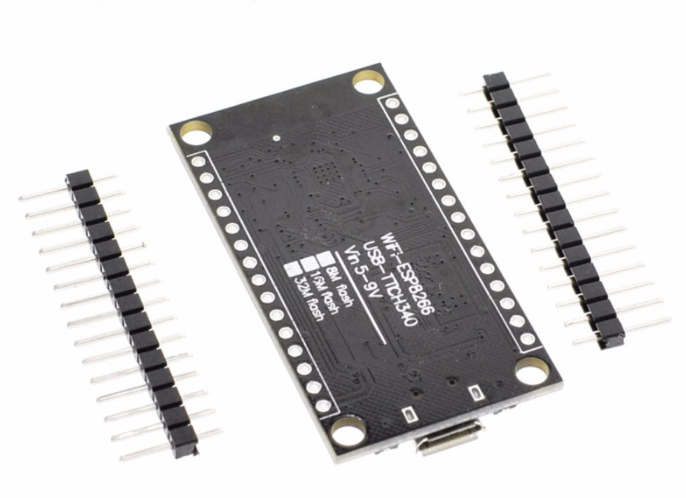

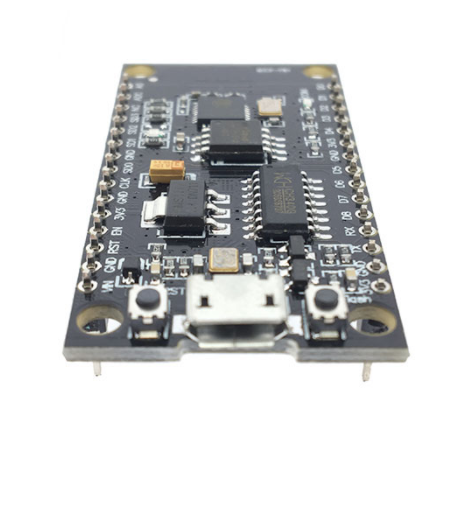

WIFI NodeM ESP8266+32Mb, module is based on widely explored esp8266 System on Chip from Expressif
WIFI NodeM ESP8266+32Mb, compatible for NodeMCU board. We add extra memory size to 32Mb. This better, for make big project with big library.
You not need to worry about size of memory On board have USB-TTL serial converter CH340G, with Micro-USB socket
Power In for DC 4~9V, to pin VIN
Pin headers 2.54mm (0.1") 15 pins x 2 lines in set. Not soldered to pcb
Features:
It combined features of WIFI accesspoint and station + microcontroller and uses simple LUA based programming language.
WIFI NodeM ESP8266+32Mb, offer:
Arduin0-like hardware IO. And can programming in Arduin0 IDE
Event-driven API for network applications
10 GPIOs D0-D10, PWM functionality, IIC and SPI communication, 1-Wire and ADC A0 etc. all in one board
Wifi networking (can be uses as access point and/or station, host a webserver), connect to internet to fetch or upload data.

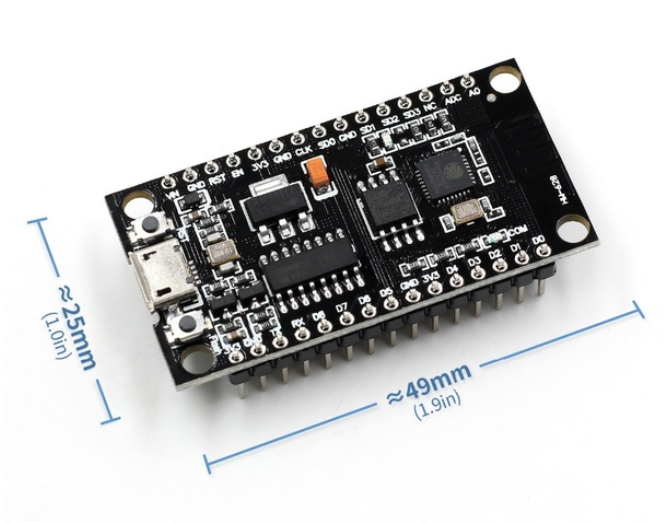

Size: 4.8x2.5cm/1.89x0.98inch
Package Included:
1 x NodeMCU V3 Lua WIFI Module ESP8266+32M Extra Memory Flash USB-Serial CH340G
Technical support is NOT included in this auction
|
