50PCS Solder Sleeve Heat Shrink Butt Waterproof AWG 22-18 Wire Splice Connector
Product Characteristics:
- The Sleeves is made with polyamide hot melt adhesives, which resist oil, high-temperature, water and corrosion. The waterproof level reaches IP67, it completly insulates and protectes the connection in harsh environment.
- The product is made of heat shrikable tubing, low tempeature solder ring and waterproof hot melt adhesives. Heat shrinkable tubing can protects the outer layer of wire, solder ring welds the wire, hot melt adhesive can enclose the sealing area.
Specification:
Shrink ratio 2:1
Minimum recommended shrink temperature: 80°C / 176°F
Minimum recommended solder melting temperature: 138°C / 280.4°F
For best results we recommend the use a heat gun!
No wire damage due to low shrink temperature
Best shrink temperatures: 125°C - 130°C / 257°F - 266°F
Shrink ratio 2:1
Minimum recommended shrink temperature: 80°C / 176°F
Minimum recommended solder melting temperature: 138°C / 280.4°F
For best results we recommend the use a heat gun!
No wire damage due to low shrink temperature
Best shrink temperatures: 125°C - 130°C / 257°F - 266°F
Package contains:

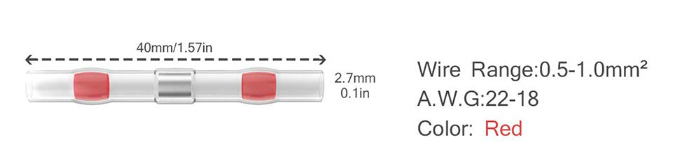

50x red: diameter 3mm, for cable cross section 0.5-1.0 mm² (AWG 22-18)

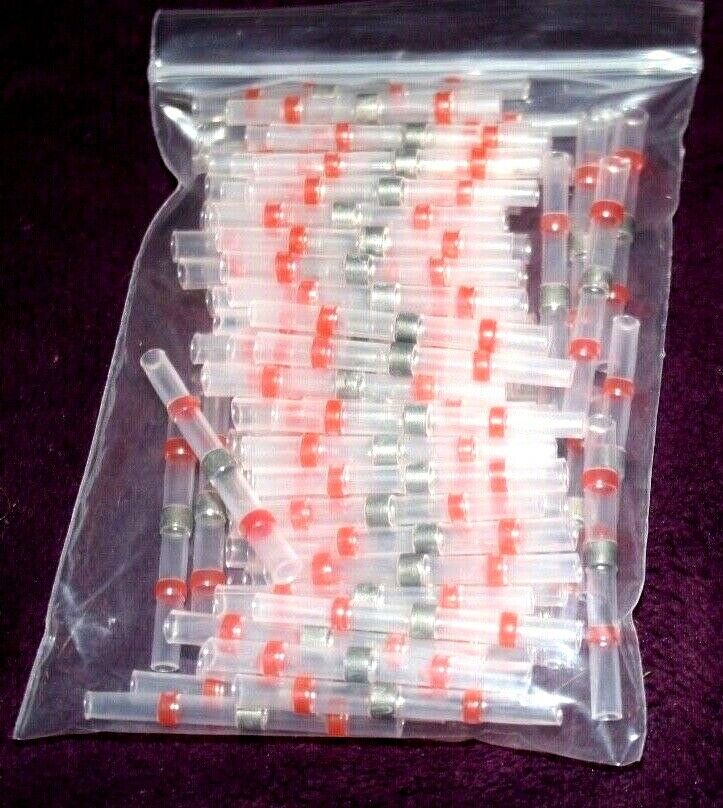

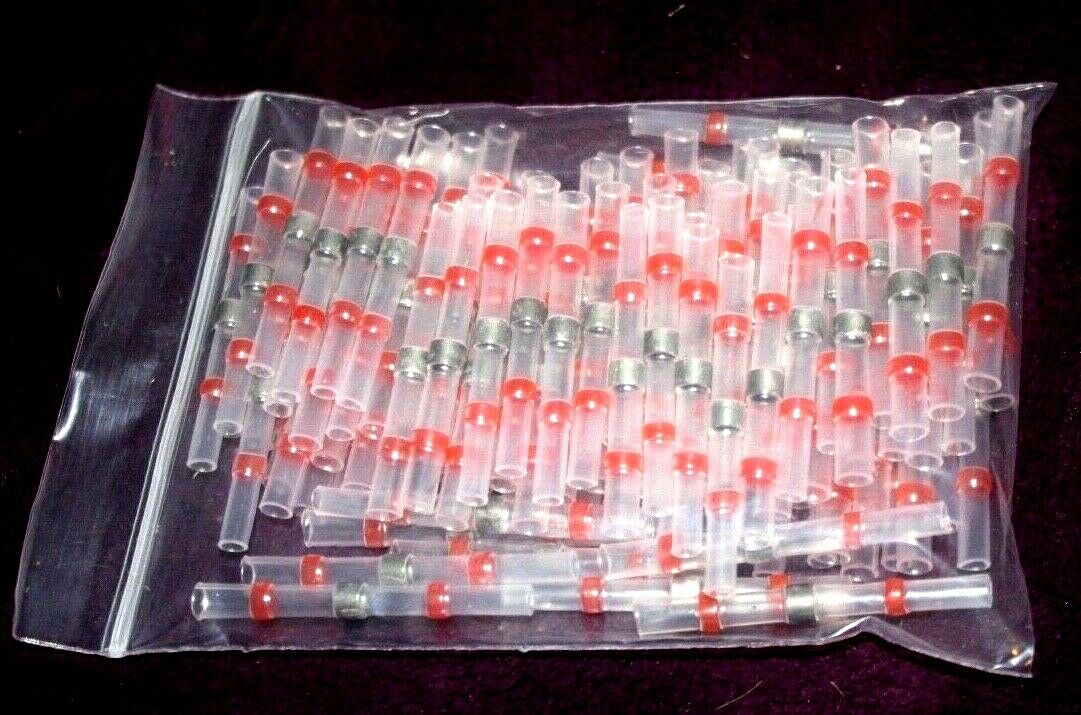

Total sleeves in pkg: 50 in poly ziplock bag
